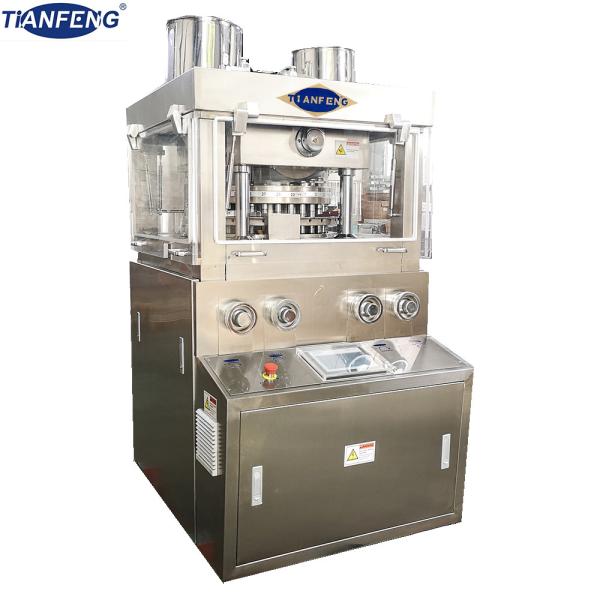

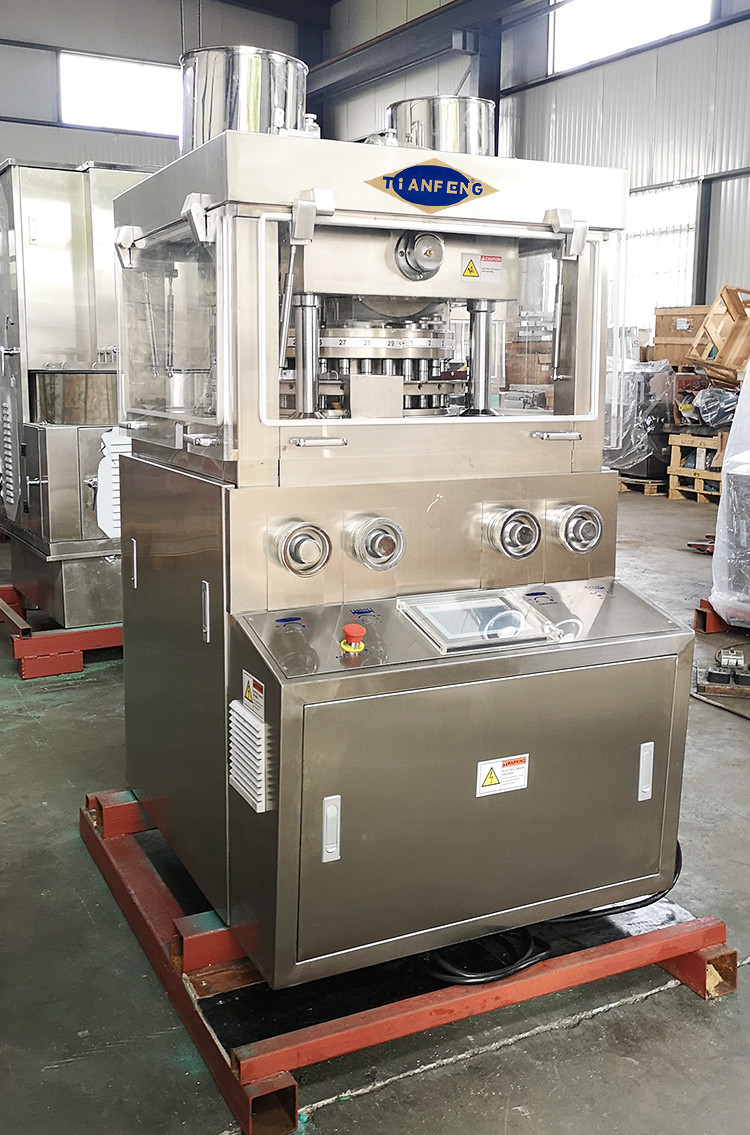

5.5KW Pharmaceutical Disinfectant Pill Press Machine ZPW29 ZPW31

Brand Name : Tianfeng

Model Number : ZPW29 ZPW31

Certification : CE/ISO

Place of Origin : Shanghai, China

MOQ : 1 unit

Price : welcome to consult

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50 units/month

Delivery Time : 20-30 working days

Packaging Details : export wooden case

Voltage : 220V/380V, 50HZ/60HZ

Condition : New

Warranty : 13 months

After-sales service provided : Engineers available to service machinery overseas

Power(w) : 5.5KW

Power source : Mechanical, electric

Type : rotary type, Tablet Pressing Machine, High capacity output, ZPW15D ZPW17D ZPW19D granules powder Tablet Press Machine

key word : pill press machine

Contact Now

5.5KW Pharmaceutical disinfectant Pill Press Machine ZPW29 ZPW31 With PLC Touch Screen

Main Feature:

1. The speed is variable frequency speed regulation, which can be adjusted arbitrarily;

2. The test machine and adjustment work can be completed without stopping the machine;

3. All controllers and operating parts are reasonably arranged and easy to operate;

4. Stable rotation, stable performance, safe and accurate, suitable for pressing all kinds of tablets.


Technique Parameters of ZPW29 Rotary Tablet Press Machine

Model ZPW29 ZPW31
Dies (sets) 29 31
Max. Pressure (KN) 80 80
Max. Dia. of tablet (mm) 25 22
Max. Filling Depth (mm) 15 15
Thickness of largest tablet (mm) 6 6
Turret speed (r/min) 14-36 14-36
Production capacity (pc/h) 48000-125000 52000-135000
Motor (KW) 3 3
Overall dimensions (mm) 1230×950×1670 1230×950×1670
Net weight (KG) 1700 1700

5.5KW Pharmaceutical Disinfectant Pill Press Machine ZPW29 ZPW315.5KW Pharmaceutical Disinfectant Pill Press Machine ZPW29 ZPW315.5KW Pharmaceutical Disinfectant Pill Press Machine ZPW29 ZPW315.5KW Pharmaceutical Disinfectant Pill Press Machine ZPW29 ZPW31

Packaging & Shipping

5.5KW Pharmaceutical Disinfectant Pill Press Machine ZPW29 ZPW31

Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.

Usually shipped special tablet press machine ZPW29 ZPW31 by sea

Quality guarantee:

1. Each machine is manufactured by our professional workers.
2. Each machine with a strict inspection before out of storage.
3. Each machine use good quality electric elements.
4. After-sales service commitment: after one month, 3 months... we will have return visiting by phone or mail.
5. The warranty time is one year:Within Warranty period, if under the usage of instruction sheet, any product broken or damage, we will offer the repair service for free or replace for free, but clients pay for the freight from China to local place. If need our engineer go to help, clients need to pay for the freight of round-trip.
6. Beside the warranty days, we continue to provide life-long maintenance services.
